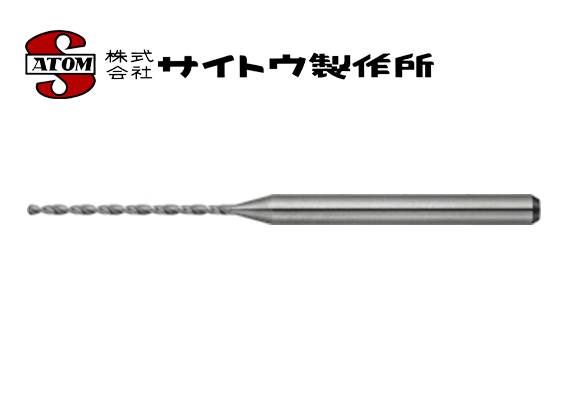

ATOM Micro Drill
Product Description :
"ATOM Micro-Diameter Drill" Challenges Semiconductor Ultra-Micro Hole Processing Technology
In response to the problem of micro-hole processing in chip packaging testing, ATOM has launched multiple solutions. The following two series are highly respected in the industry:
ADR Standard Series Drill
The minimum diameter of the ADR series can reach Ø 0.02mm, and the diameter tolerance is less than −0.005mm. It is suitable for micro-hole processing of materials such as steel, non-ferrous metals and resins. Yuewei Technology is the general agent of ATOM in Taiwan and China, with sufficient inventory and efficient delivery services.
ADR-SV Standard Coated Series Drill
The ADR-SV series drill has a wear-resistant FCS coating and is suitable for micro-hole processing of soft steel and high-hardness steel (HRC50). This series is designed with a wider chip groove and polished on the edge of the cutting edge, which significantly improves the chip removal smoothness and processing quality, and effectively extends the life of the drill.
Advantages and features of "ATOM micro-diameter drill" in semiconductor manufacturing
1. Extremely high precision
ATOM micro-diameter drill can achieve extremely high drilling accuracy on materials such as aluminum alloy and engineering plastic (PEEK). This is crucial for socket test sockets, because ICs are getting smaller and smaller in the process of rapid technological development. How to achieve the hole position accuracy required by customers in the manufacture of socket test sockets requires not only the stability of machine tools, but also the support of tools.
2. Excellent hole wall roughness and hole burr suppression
The hole wall roughness and hole burr suppression of micro-diameter drilling are directly related to the quality of the hole. Whether it is a blind hole (Blind Hole) or a through hole (Through Hole), ATOM micro-diameter drill can achieve smooth, burr-free, flawless hole wall roughness and hole, which helps product yield and remove burrs after processing.
3. Low loss and high production efficiency
When drilling, high-speed machining machines cause the temperature of the drill tip to rise due to the high speed, which leads to drill wear. ATOM micro-diameter drills use high-quality all-tungsten steel raw materials as the base material to achieve ultra-long tool life, thereby saving the problem of equipment stagnation due to tool change.
4. Full size and complete inventory
As the exclusive agent of ATOM micro-diameter drills, Yuewei Technology imports a full range of Japanese size series inventory, from Φ0.03~Φ1.00, with a standard inventory of Φ0.01, and a diameter ratio of 5D/10D/15D/20D, uncoated ADR or coated ADR-SV are all in stock in Taiwan, meeting the needs of today's increasingly shorter delivery time, and achieving the convenience of 2-day delivery.
5. Customizability
ATOM micro-diameter drills can be customized according to the needs of specific applications. Whether you need a stage forming drill, a high-diameter drill, or a water-out drill, you can customize it according to the drawing.
【Contact Information】
Tel: +886-2-26327601
Fax: +886-2-26327604
Line@ : https://line.me/R/ti/p/%40332yetoa
Website: https://asun-photonics.com/
In response to the problem of micro-hole processing in chip packaging testing, ATOM has launched multiple solutions. The following two series are highly respected in the industry:
ADR Standard Series Drill
The minimum diameter of the ADR series can reach Ø 0.02mm, and the diameter tolerance is less than −0.005mm. It is suitable for micro-hole processing of materials such as steel, non-ferrous metals and resins. Yuewei Technology is the general agent of ATOM in Taiwan and China, with sufficient inventory and efficient delivery services.
ADR-SV Standard Coated Series Drill
The ADR-SV series drill has a wear-resistant FCS coating and is suitable for micro-hole processing of soft steel and high-hardness steel (HRC50). This series is designed with a wider chip groove and polished on the edge of the cutting edge, which significantly improves the chip removal smoothness and processing quality, and effectively extends the life of the drill.
Advantages and features of "ATOM micro-diameter drill" in semiconductor manufacturing
1. Extremely high precision
ATOM micro-diameter drill can achieve extremely high drilling accuracy on materials such as aluminum alloy and engineering plastic (PEEK). This is crucial for socket test sockets, because ICs are getting smaller and smaller in the process of rapid technological development. How to achieve the hole position accuracy required by customers in the manufacture of socket test sockets requires not only the stability of machine tools, but also the support of tools.
2. Excellent hole wall roughness and hole burr suppression
The hole wall roughness and hole burr suppression of micro-diameter drilling are directly related to the quality of the hole. Whether it is a blind hole (Blind Hole) or a through hole (Through Hole), ATOM micro-diameter drill can achieve smooth, burr-free, flawless hole wall roughness and hole, which helps product yield and remove burrs after processing.
3. Low loss and high production efficiency
When drilling, high-speed machining machines cause the temperature of the drill tip to rise due to the high speed, which leads to drill wear. ATOM micro-diameter drills use high-quality all-tungsten steel raw materials as the base material to achieve ultra-long tool life, thereby saving the problem of equipment stagnation due to tool change.
4. Full size and complete inventory
As the exclusive agent of ATOM micro-diameter drills, Yuewei Technology imports a full range of Japanese size series inventory, from Φ0.03~Φ1.00, with a standard inventory of Φ0.01, and a diameter ratio of 5D/10D/15D/20D, uncoated ADR or coated ADR-SV are all in stock in Taiwan, meeting the needs of today's increasingly shorter delivery time, and achieving the convenience of 2-day delivery.
5. Customizability
ATOM micro-diameter drills can be customized according to the needs of specific applications. Whether you need a stage forming drill, a high-diameter drill, or a water-out drill, you can customize it according to the drawing.
【Contact Information】
Tel: +886-2-26327601
Fax: +886-2-26327604
Line@ : https://line.me/R/ti/p/%40332yetoa
Website: https://asun-photonics.com/
