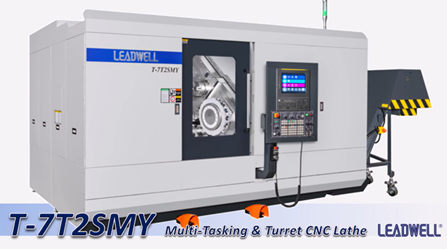

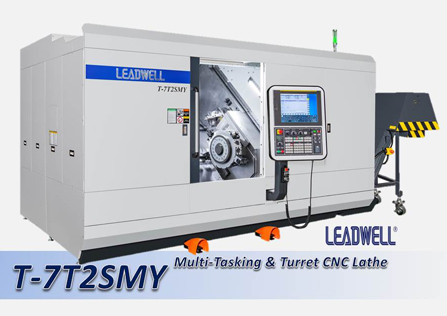

T-7T2SMY Multi-Tasking Machine
Product Description :
Spindle nose A2-6 with 8” inch chuck for both spindles. The bar capacity of the main spindle is up to 52mm. Spindle uses high-power built-in motor with a maximum torque of 292Nm which for heavy cutting and surface milling operations. The capacity of the Y axis is ±50mm, which allow offset processing and increase the speed of milling.
Max. swing: 790mm
Max. turning diameter: 300mm
Max. turning length: 770mm
Bar capacity: 52mm
X1-axis travel: 235+15mm
X2-axis travel: 220+10mm
Z1-axis travel: 770mm
Z2-axis travel: 790mm
B-axis travel: 770mm
Y-axis travel: ±50mm
Spindle speed(Main/Sub): 4500rpm
Spindle nose(Main/Sub): A2-6
Spindle motor power(Main/Sub): 25kw
Number of tool stations: 16T
Max. swing: 790mm
Max. turning diameter: 300mm
Max. turning length: 770mm
Bar capacity: 52mm
X1-axis travel: 235+15mm
X2-axis travel: 220+10mm
Z1-axis travel: 770mm
Z2-axis travel: 790mm
B-axis travel: 770mm
Y-axis travel: ±50mm
Spindle speed(Main/Sub): 4500rpm
Spindle nose(Main/Sub): A2-6
Spindle motor power(Main/Sub): 25kw
Number of tool stations: 16T
