EANG LIAN CORPORATION
Product Description :
UNION Professional Honing Brushes Applications: Brake Cylinders, Hydraulics, Valve Guides Abrasive Type/Grit Size : #80、#120、#180、#240、#320、#500、#600、#800 Strong twisted wire handle for Hand or Drill use. Sizes to suit bores from 6.3 to 203mm. Ideal for surface finishing, blending and burr removal. Always use good quality honing fluid and start honing at low speed.</p>
PHB Flexible Honing BrushesF/lexible Honing Brushes
CHING HSYANG MACHINERY INDUSTRY CO., LTD
Product Description :
1. This machine is designed for internal and external shaving of round
tubes.
2. The center line of the processed object and the insert head is accurate.
3. The clamping die and the insert head are designed to be uniform, and
the work piece can be processed uniformly at one time.
4. The insert head is specially designed, the blade is standardized, and the
adjustment tool is simple and fast.
5. Feeding by manual, automatic advance and retreat blade, fast speed,
suitable for material steel pipe, iron pipe, aluminum pipe, copper pipe,
stainless steel pipe, plastic pipe, non-metal material and carbon fiber
pipe.
6. The machine is randomly matched with the multiple clamp, which can
be applied to different pipe diameters, saving time and cost for
replacing the clamp.
HEIDENHAIN CO., LTD. (TAIWAN)
Product Description :
In addition to milling operations, the TNC 640 also combines operations from milling, turning, and grinding processes. This sets the TNC 640 apart as a high-end control within its field of application. It is particularly well suited to HSC and 5-axis simultaneous machining, including on fully automated machining centers. The TNC 640 stands for perfect surface quality, exceptional accuracy, and very short machining times combined with shop-friendly operation and programming. On a milling/ turning machine with TNC 640, you machine the complete work piece on one machine in whatever sequence is needed. You can switch back and forth regardless of the machine and its axis configuration. The TNC 640 makes all necessary adjustments, e.g. switching to diameter display and setting the datum in the rotary table center. Batch Process Manager allows you to optimally plan and execute production jobs with great ease. With Batch Process Manager you can flexibly define the sequence of your jobs and, prior to machining, check to ensure that all of the required tools are available and that the NC program will run without errors.
CHANDOX PRECISION INDUSTRIAL CO., LTD.
Product Description :

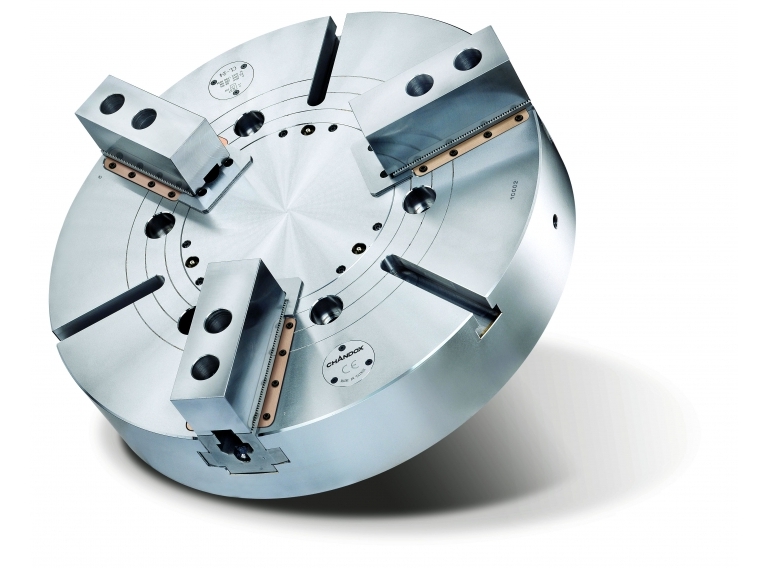

大尺寸中實夾頭，適合立式車床加工使用。
1.鋼製外殼具備穩定的機械性質以及高轉速，提昇加工穩定度與彈性。
2.特製黃銅防塵密封條，減少進入夾爪內部的切屑或雜質，降低故障機率。
3.提供多種鼻端規格的連接板方便安裝與更換。
1. Steel Chuck body have stable Mechanical Behavior and high rotating speed, it could raise your working stability and flexible machining applications.
2. Brass dust sealing which installed on the both side of slideway, can prevent the scraps into the chuck when machining, and keep the working stability.
3. We provide different flange plate for adapt with different A2 Spindle Nose size, it’s easier and more convenient for installing and changing the chuck.
SUN FIRM MACHINERY IND. CO., LTD.
Product Description :
The latest Sun Firm CST-46160 is a horizontal CNC precision lathe offering high flexibility and processing efficiency. Our specially designed spindle accommodates up to two sets of mandrels at the front and back, which is perfect for processing long tubes or bars. The turret is designed to fit the rigid platform-type rail structure, providing the best balance between high cutting resistance and processing efficiency. The design of the body structure is complete and the interface is taken into account in advance. It can support the robot arm, the automatic power system as well as the power turret and lead to a more efficient treatment, bringing us win-win benefits.
LEEKA INDUSTRIAL CO., LTD.
Product Description :
We produce draw latches with different kinds of size and specifications.
The material uses stainless steel and Iron.
Color: black powder coated or bright chrome.
The installation depends on different type of latches: horizontal or vertical installation and can be used with padlocks.
